SAE 100 R6

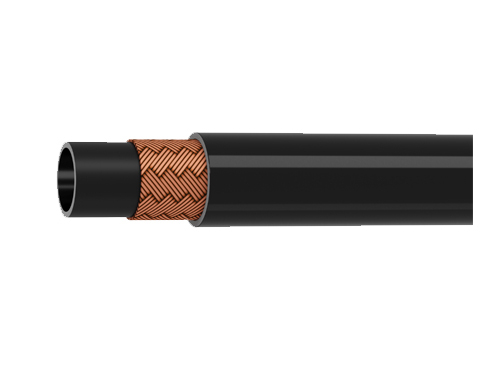

SAE 100R6 HYDRAULIC RUBBER HOSE

Applications:Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc.

Tube:Black oil-resistant synthetic rubber
Reinforcement:A layer of woven fiber
Cover:Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature Range:-40℃ to +100℃ (-40℉ to +212℉)

Request A Quote

Product Application

Applications:Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc.

Product Attributes

Tube:Black oil-resistant synthetic rubber
Reinforcement:A layer of woven fiber
Cover:Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature Range:-40℃ to +100℃ (-40℉ to +212℉)

Product Parameters

SIZE
(Dash)
SIZE
(in.)
I.D.(mm) O.D.(mm) Max.W.P. Min.B.P. Min.B.R.
Min Max Max (MPa) (MPa) (mm)
3 3/16 4.4 5.2 11.9 3.4 14 50
4 1/4 5.9 6.9 13.5 2.8 11.2 65
5 5/16 7.4 8.4 15.1 2.8 11.2 80
6 3/8 9 10 16.7 2.8 11.2 80
8 1/2 12.1 13.3 20.6 2.8 11.2 100
10 5/8 15.3 16.5 23.8 2.4 9.6 125
12 3/4 18.2 19.8 27.8 2.1 8.4 150
