SAE 100R4

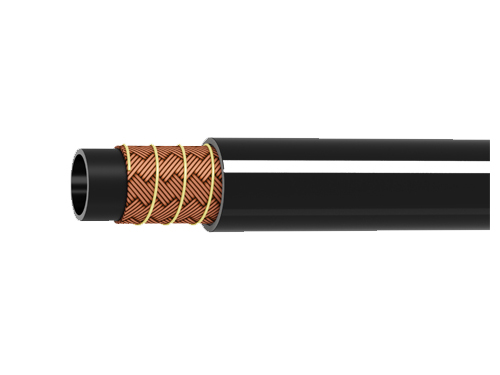

SAE 100R4 HYDRAULIC SUCTION RUBBER HOSE

  • Applications:Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc
  • Tube:Black oil-resistant synthetic rubber
  • Reinforcement:Two layers of woven fiber
  • Cover:Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
  • Temperature Range:-40 °C to + 100℃ (-40°F to + 212°F)
Request A Quote

Product Attributes

Tube:Black oil-resistant synthetic rubber
Reinforcement:Two layers of woven fiber
Cover:Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature Range:-40 °C to + 100℃ (-40°F to + 212°F)

Product Parameters

SIZE
(Dash)
SIZE
(in.)
I.D.(mm) O.D.(mm) Max.W.P. Min.B.R.
Min Max Max (MPa) (MPa)
12 3/4 18.2 19.8 34.9 2.1 8.4
16 1 24.6 26.2 41.3 1.7 7
20 1 1/4 30.6 33 50.8 1.4 5.6
24 1 1/2 36.9 39.3 57.2 1.05 4.2
32 2 49.2 52.4 69.9 0.7 2.8
40 2 1/2 61.9 65.1 82.6 0.4 1.7
48 3 74.6 77.8 95.3 0.4 1.6
56 3 1/2 87.3 90.5 107.9 0.3 1.3
64 4 100 103.2 120.7 0.25 1
