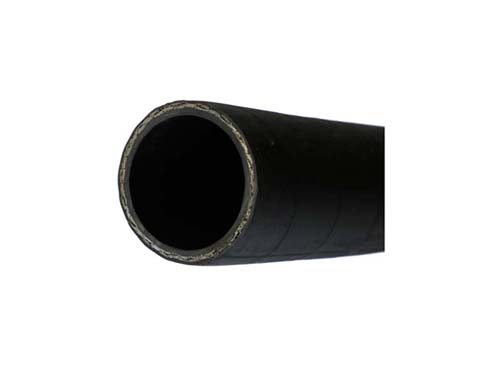

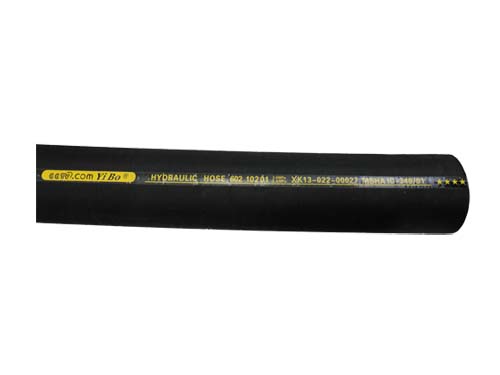

Large Diameter Steel Wire Braid Hydraulic Rubber Hose
Product Application
Transmit petroleum base hydraulic fluids
Product Attributes
Product Parameters
| SIZE | SIZE | I.D. (mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| (Dash) | (in.) | Min | Max | Max | (MPa) | (MPa) | (mm) |
| 64 | 2-1/2-1 | 63.5 | 65.3 | 80 | 3.5 | 10.5 | 800 |
| 76 | 3-1 | 75.5 | 77.5 | 92 | 3 | 9 | 920 |
| 86 | 3-3/8-1 | 84.5 | 86.7 | 101 | 2.5 | 7.5 | 1000 |
| 89 | 3-1/2-1 | 88.4 | 90 | 106 | 2.5 | 7.5 | 1100 |
| 101 | 4-1 | 101 | 104.5 | 121 | 2 | 6 | 1300 |
| 64 | 2-1/2-2 | 63.5 | 65.3 | 80 | 7 | 21 | 800 |
| 76 | 3-2 | 75.5 | 77.5 | 94 | 6 | 18 | 920 |
| 86 | 3-3/8-2 | 84.5 | 86.7 | 103 | 5 | 15 | 1000 |
| 89 | 3-1/2-2 | 88.4 | 90 | 108 | 5 | 15 | 1100 |
| 102 | 4-2 | 101 | 104.5 | 123 | 4 | 12 | 1300 |
