SAE 100 R12

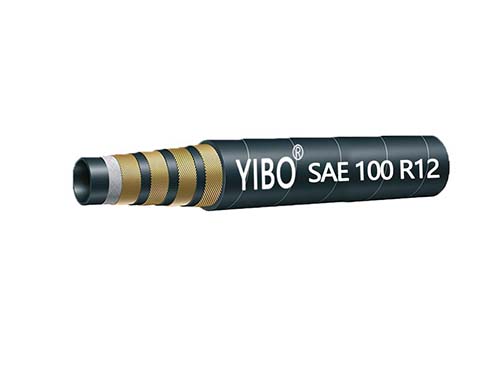

SAE R12 Steel Wire Spiral Hydraulic Rubber Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement:4 spirals of high tensile steel wire
  • Cover:Black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety Factor：4:1

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Transmit petroleum base hydraulic fluids

Product Attributes

  • Tube: Oil resistant synthetic rubber
  • Reinforcement: 4 spirals of high tensile steel wire
  • Cover: Black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety Factor：4:1
  • Application: Transmit petroleum base hydraulic fluids
  • Temperature Range: -40℃～+100℃（-40ºF～+212ºF）

Product Parameters

TPYE SIZE SIZE I.D W.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Min Max Min Max MPa MPa MPa mm kg/m
R12-06 10.0 3/8 9.3 10.1 16.6 17.8 19.5 21.0 28.0 56 112 125 0.70
R12-08 12.5 1/2 12.3 13.5 19.9 21.5 23.0 24.6 28.0 56 112 180 0.83
R12-10 16.0 5/8 15.5 16.7 23.8 25.4 26.6 28.2 28.0 56 112 200 1.12
R12-12 19.0 3/4 18.6 19.8 26.9 28.4 29.9 31.5 28.0 56 112 240 1.43
R12-16 25.0 1 25.0 26.4 34.1 35.7 36.8 39.2 28.0 56 112 300 2.00
R12-20 31.5 1-1/4 31.4 33.0 42.7 45.1 45.4 48.6 21.0 42 84 420 2.80
R12-24 38.0 1-1/2 37.7 39.3 49.2 51.6 51.9 55.0 17.5 35 70 500 3.40
R12-32 51.0 2 50.4 52.0 62.5 64.8 65.1 68.3 17.5 35 70 640 4.25
