EN856 4SH/EN856 4SP

Wire Spiral Reinforced Hydraulic Hose

Applications：suitable for the use of petroleum base hydraulic oil

Tube：The hose consists of a neoprene inner rubber layer
Reinforcement：4-layer high strength steel wire winding layer
Cover：oil and weather resistant synthetic rubber outer rubber layer
Temperature Range： -40℃~+100℃(-40°F~+212°F)
Standard：Hose execution ne856-4sh standard, GB/ t10544-2013 standard

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Transmit petroleum base hydraulic fluids

Product Attributes

Tube：The hose consists of a neoprene inner rubber layer
Reinforcement：4-layer high strength steel wire winding layer
Cover：oil and weather resistant synthetic rubber outer rubber layer
Temperature Range： -40℃~+100℃(-40°F~+212°F)
Standard：Hose execution DIN EN856-4sh/ DIN EN856-4SP standard, GB/ t10544 standard

Product Parameters

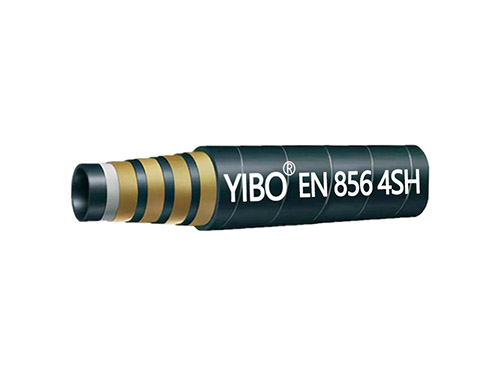

EN 856 4SH

TPYE SIZE SIZE I.D W.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Min Max Min Max MPa MPa MPa mm kg/m
4SH-10 16 5/8 15.4 16.4 23.2 24.8 27.4 29.0 45.0 90 180 250 1.30
4SH-12 19 3/4 18.6 19.8 27.6 29.2 31.4 33.0 42.0 84 168 280 1.70
4SH-16 25 1 25.0 26.4 34.4 36.0 37.5 39.9 38.0 76 152 340 2.50
4SH-20 31.5 1-1/4 31.4 33.0 40.9 42.9 43.9 47.1 32.5 65 130 460 3.00
4SH-24 38 1-1/2 37.7 39.3 47.8 49.8 51.9 55.1 29.0 58 116 560 3.60
4SH-32 51 2 50.4 52.0 62.2 64.2 66.5 69.7 25.0 50 100 700 5.00

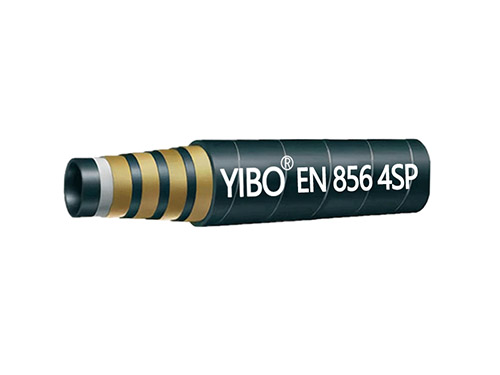

EN 856 4SP

TPYE SIZE SIZE I.D W.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Min Max Min Max MPa MPa MPa mm kg/m
4SP-06 10 3/8 9.3 10.1 16.9 18.1 20.6 22.2 44.5 89 178 180 0.75
4SP-08 12.5 1/2 12.3 13.5 19.4 21.0 23.8 25.4 41.5 83 166 230 0.90
4SP-10 16 5/8 15.5 16.7 23.0 24.6 27.4 29.0 35.0 70 140 250 1.10
4SP-12 19 3/4 18.6 19.8 27.4 29.0 31.4 33.0 35.0 70 140 300 1.50
4SP-16 25 1 25.0 26.4 34.5 36.1 38.5 40.9 28.0 56 112 340 2.00
4SP-20 31.5 1-1/4 31.4 33.0 45.0 47.0 49.2 52.4 21.0 42 84 460 3.00
4SP-24 38 1-1/2 37.7 39.3 51.4 53.4 55.6 58.8 18.5 37 74 560 3.10
4SP-32 51 2 50.4 52.0 64.3 66.3 68.2 71.4 16.5 33 66 660 4.35
