Large Size Spiral Hose

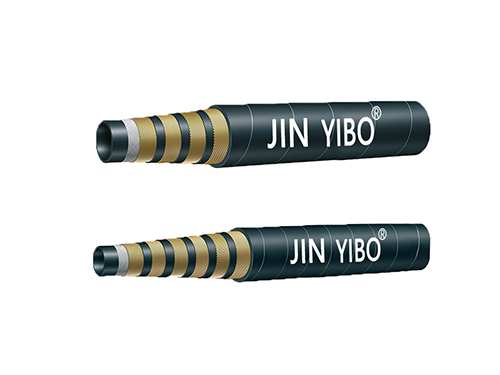

Large Size Steel Wire Spiral Hydraulic Rubber Hose

Features:Suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, emulsion oil

Tube:hoses are made of special composite rubber internals with good super high temperature resistance
Reinforcement:Multispiral high tensile super flexible steel wire
Cover:Anti-aging synthetic rubber
Temperature Range:-40℃~100℃(-40°F~+212°F)
Standard:Hose execution API,ISO6807 standard

Request A Quote

Product Application

Features:Suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, emulsion oil

Product Attributes

Tube:hoses are made of special composite rubber internals with good super high temperature resistance
Reinforcement:Multispiral high tensile super flexible steel wire
Cover:Anti-aging synthetic rubber
Temperature Range:-40℃~100℃(-40°F~+212°F)
Standard:Hose execution API,ISO6807 standard

Product Parameters

I.D.
(mm)
I.D.
(in.)
I.D. (mm) O.D.(mm) Max.W.P Min. B.P Min. B.R
Min Max Max (MPa) (MPa) (mm)
51 2– 4 50 52 70.5 35 87.5 900
64 2 1/2– 4 62.8 65.2 85.5 35 87.5 1100
76 3– 4 74.6 77.4 109 35 87.5 1200
89 3 1/2– 4 87.6 90.4 122 35 87.5 1300
127 4– 4 125.5 128.5 135 35 87.5 1400
51 2–6 50 52 73.5 50 140 1000
64 2 1/2–6 62.8 65.2 92 50 140 1200
76 3–6 74.6 77.4 105.5 50 140 1300
89 3 1/2–6 87.6 90.4 121.5 50 140 1400
102 4–6 100.5 103.5 139 50 140 1600
