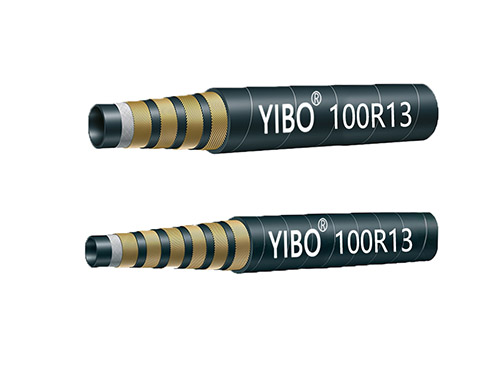

SAE 100 R13

Multiple Spiral Steel Wire Reinforced Hydraulic Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement: 4or6 spirals of high tensile steel wire
  • Cover:Black smooth, oil, weather and abrasion resistant synthetic rubber
  • Safety Factor：4:1

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Transmit petroleum base hydraulic fluids

Product Attributes

  • Tube: Oil resistant synthetic rubber
  • Reinforcement: 4 or 6 spirals of high tensile steel wire
  • Cover: Black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety Factor：4:1
  • Application: Transmit petroleum base hydraulic fluids
  • Temperature Range: -40℃～+100℃（-40ºF～+212ºF）

Product Parameters

TPYE SIZE SIZE I.D W.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Min Max Min Max MPa MPa MPa mm kg/m
R13-12 19.0 3/4 18.6 19.8 28.2 29.8 31.0 33.2 35 70 140 240 1.80
R13-16 25.0 1 25.0 26.4 34.9 36.4 37.6 39.8 35 70 140 300 2.50
R13-20 31.5 1-1/4 31.4 33.0 45.6 48.0 48.3 51.3 35 70 140 420 3.80
R13-24 38.0 1-1/2 37.7 39.3 53.1 55.5 55.8 58.8 35 70 140 500 4.85
R13-32 51.0 2 50.4 52.0 66.9 69.3 69.5 72.7 35 70 140 640 6.90
