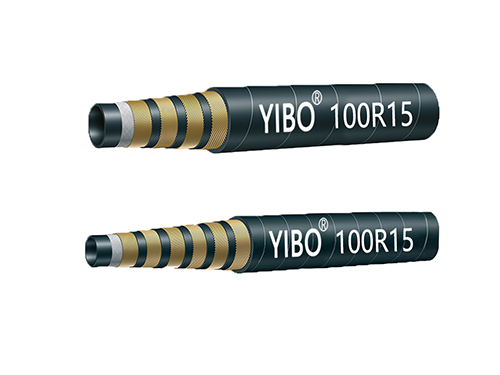

SAE 100 R15

Multiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement:4 or 6 spirals of high tensile steel wire
  • Cover:Black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety Factor：4:1

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Transmit petroleum base hydraulic fluids

Product Attributes

  • Tube: Oil resistant synthetic rubber
  • Reinforcement: 4 or 6 spirals of high tensile steel wire
  • Cover: Black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety Factor：4:1
  • Application: Transmit petroleum base hydraulic fluids
  • Temperature Range: -40℃～+100℃（-40ºF～+212ºF）

Product Parameters

TPYE SIZE SIZE I.D W.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Max Max MPa MPa MPa mm kg/m
R15-06 10 44628 9.3 10.1 20.3 23.3 42 84 168 150 0.8
R15-08 12.5 44563 12.3 13.5 24 26.8 42 84 168 200 0.55
R15-12 19 44624 18.6 19.8 32.9 36.1 42 84 168 265 1.85
R15-16 25 1 25 26.4 38.9 42.9 42 84 168 330 2.9
R15-20 31.5 36895 31.4 33 48.4 51.5 42 84 168 445 4.2
R15-24 38 36893 37.7 39.3 56.3 59.6 42 84 168 530 5.6
