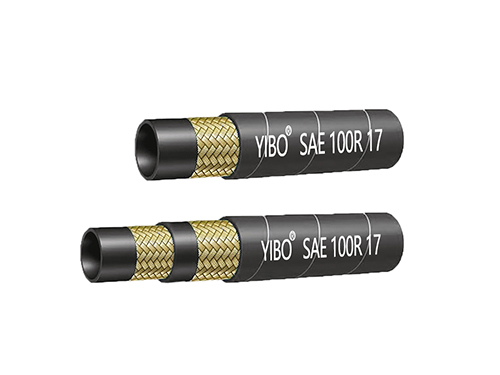

SAE 100 R17

Compact,21mpa Maximum Working Pressure Wire Braid Hydraulic Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement:1 or 2 High Tensile Steel Wire Braids
  • Cover:Black smooth or black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety factor:4:1

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Transmit petroleum base hydraulic oil or water

Product Attributes

  • Tube:Oil resistant synthetic rubber
  • Reinforcement:1 or 2 High tensile steel wire braids
  • Cover:Black smooth or black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety factor:4:1
  • Application:Transmit petroleum base hydraulic oil or water
  • Temperature Range:-40℃～+100℃（-40ºF～+212ºF）

Product Parameters

TPYE SIZE SIZE I.D W.D O.D Cover thickness Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Max Max Min Max MPa MPa MPa mm kg/m
R17-03 5 44636 4.6 5.4 10.1 11.6 0.8 1.5 21 42 84 45
R17-04 6.3 44565 6.2 7 11 13.2 0.8 1.5 21 42 84 50 0.17
R17-05 8 44697 7.7 8.5 13 15 0.8 1.5 21 42 84 55 0.21
R17-06 10 44628 9.3 10.1 15 17 0.8 1.5 21 42 84 65 0.25
R17-08 12.5 44563 12.3 13.5 18.8 21.1 0.8 1.5 21 42 84 90 0.47
R17-10 16 44689 15.5 16.7 23.6 25.9 0.8 1.5 21 42 84 100 0.59
R17-12 19 44624 18.6 19.8 27.7 30.3 0.8 1.5 21 42 84 120 0.75
R17-16 25 1 25 26.4 38.6 38.6 0.8 2.2 21 42 84 150 1.46
