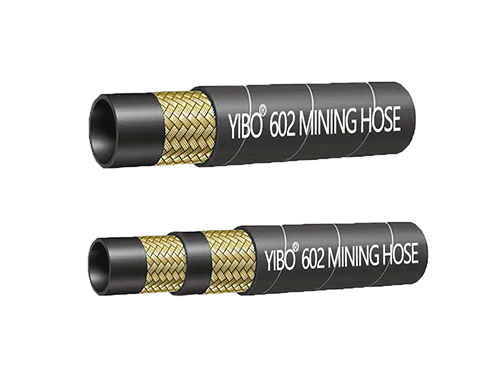

602 MINING STEEL WIRE BRAID HYDRAULIC RUBBER HOSE
Applications：Suitable for hydraulic support, comprehensive set of hydraulic system Shearer transport mineral oil, water-based hydraulic oil or water
Tube：black oil-resistant synthetic rubber
Reinforcement：one or more layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)
Product Application
Product Attributes
Product Parameters
| TPYE | SIZE | SIZE | I.D | W.D | O.D | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | |||
| mm | inch | Min | Max | Min | Max | Min | Max | MPa | MPa | MPa | mm | kg/m | |
| 601 | 6 | 1/4 | 5.5 | 6.5 | 11.1 | 12.1 | 15.2 | 17 | 32 | 40 | 80 | 100 | 0.35 |
| 801 | 8 | 5/16 | 7.5 | 8.5 | 13.1 | 14.1 | 17.2 | 19 | 28 | 35 | 70 | 115 | 0.43 |
| 1001 | 10 | 3/8 | 9.5 | 10.5 | 15.1 | 16.1 | 19.2 | 21 | 25.6 | 32 | 64 | 130 | 0.49 |
| 1301 | 12.5 | 1/2 | 12.5 | 13.5 | 18.9 | 19.9 | 23 | 25.2 | 22.4 | 33.6 | 56 | 180 | 0.64 |
| 1601 | 16 | 5/8 | 15.5 | 15.5 | 22 | 23 | 26 | 28.2 | 16.8 | 21 | 42 | 205 | 0.75 |
| 1901 | 19 | 3/4 | 18.5 | 19.5 | 25 | 26 | 29 | 31.2 | 14.4 | 18 | 36 | 240 | 0.84 |
| 2201 | 22 | 7/8 | 21.5 | 22.5 | 28 | 29 | 32 | 34.2 | 12.8 | 16 | 32 | 280 | 1.00 |
| 2501 | 25 | 1 | 24.5 | 25.5 | 31.5 | 32.5 | 36 | 38.2 | 11.2 | 14 | 28 | 300 | 1.10 |
| 3201 | 31.5 | 1-1/4 | 31.3 | 32.7 | 38.5 | 39.5 | 42.8 | 45.5 | 9 | 11.5 | 22.5 | 420 | 1.40 |
| 3801 | 38 | 1-1/2 | 37.3 | 38.7 | 45 | 46 | 49 | 51.5 | 7 | 9 | 17.5 | 500 | 1.58 |
| 4501 | 45.4 | 1-3/4 | 44 | 46 | 52 | 53 | 55.5 | 57.5 | 5 | 8 | 12.5 | 550 | 1.80 |
| 5101 | 51 | 2 | 50 | 52 | 57.7 | 58.8 | 61.6 | 66.4 | 3 | 6 | 7.5 | 630 | 1.99 |
| 602 | 6 | 1/4 | 5.5 | 6.5 | 12.9 | 13.9 | 17.2 | 19 | 56 | 70 | 140 | 100 | 0.48 |
| 802 | 8 | 5/16 | 7.5 | 8.5 | 14.9 | 15.9 | 19.2 | 21 | 48 | 60 | 120 | 115 | 0.60 |
| 1002 | 10 | 3/8 | 9.5 | 10.5 | 16.9 | 17.9 | 21.2 | 23 | 40 | 50 | 100 | 130 | 0.68 |
| 1302 | 12.5 | 1/2 | 12.5 | 13.5 | 20.7 | 21.7 | 25 | 27.2 | 36 | 45 | 90 | 180 | 0.93 |
| 1602 | 16 | 5/8 | 15.5 | 15.5 | 23.7 | 24.7 | 28 | 30.2 | 32 | 40 | 80 | 205 | 1.07 |
| 1902 | 19 | 3/4 | 18.5 | 19.5 | 26.7 | 27.7 | 31 | 33.2 | 25 | 31.5 | 62 | 240 | 1.18 |
| 2202 | 22 | 7/8 | 21.5 | 22.5 | 30 | 31 | 34 | 36.2 | 22 | 27.5 | 55 | 280 | 1.28 |
| 2502 | 25 | 1 | 24.5 | 25.5 | 33.5 | 34.5 | 38 | 40.2 | 21 | 26.5 | 52 | 300 | 1.52 |
| 3202 | 31.5 | 1-1/4 | 31.3 | 32.7 | 40.2 | 41.2 | 44.8 | 57.5 | 17 | 21.5 | 42.5 | 420 | 1.91 |
| 3802 | 38 | 1-1/2 | 37.3 | 38.7 | 46.5 | 47.5 | 50 | 52.5 | 12 | 15 | 30 | 500 | 2.10 |
| 4502 | 45.4 | 1-3/4 | 44 | 46 | 53.5 | 54.5 | 57 | 59 | 9 | 13.5 | 22.5 | 55 | 2.40 |
| 5102 | 51 | 2 | 50 | 52 | 59.5 | 60.5 | 63.8 | 66.4 | 8 | 12 | 20 | 630 | 2.51 |
| 803 | 8 | 5/16 | 7.5 | 8.5 | 16.5 | 17.5 | 20.2 | 22 | 50 | 75 | 125 | 115 | 0.79 |
| 1003 | 10 | 3/8 | 9.5 | 10.5 | 18.5 | 19.5 | 22.2 | 24 | 45 | 62.5 | 112.5 | 130 | 0.90 |
| 1303 | 12.5 | 1/2 | 12.5 | 13.5 | 22.5 | 23.5 | 26 | 28.2 | 40 | 56 | 100 | 180 | 1.20 |
| 1603 | 16 | 5/8 | 15.5 | 15.5 | 25.5 | 26.5 | 29 | 31.2 | 35 | 43.5 | 87.5 | 205 | 1.39 |
| 1903 | 19 | 3/4 | 18.5 | 19.5 | 28.5 | 29.5 | 32 | 34.2 | 28 | 35 | 70.5 | 240 | 1.54 |
| 2202 | 22 | 7/8 | 21.5 | 22.5 | 31.5 | 32.5 | 35 | 36.2 | 25 | 31.5 | 62.5 | 280 | 1.66 |
| 2503 | 25 | 1 | 24.5 | 25.5 | 34.6 | 35.6 | 38 | 40.2 | 24 | 30 | 60.5 | 300 | 1.97 |
| 3203 | 31.5 | 1-1/4 | 31.3 | 32.7 | 42 | 43 | 45.8 | 48.5 | 19 | 24 | 47.5 | 420 | 2.48 |
| 3803 | 38 | 1-1/2 | 37.3 | 38.7 | 48 | 49 | 52 | 54.5 | 15 | 19 | 37.5 | 500 | 2.90 |
