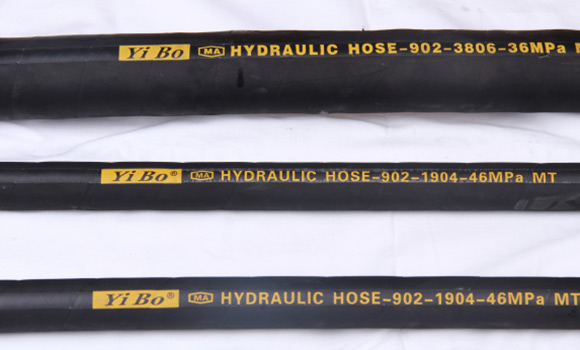

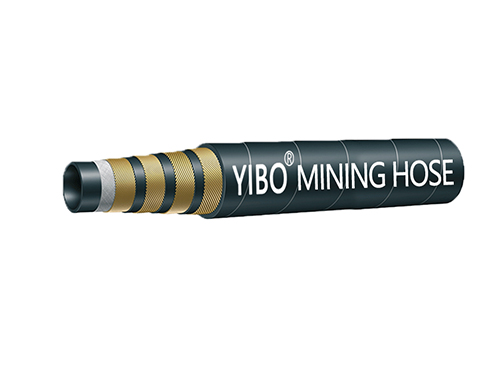

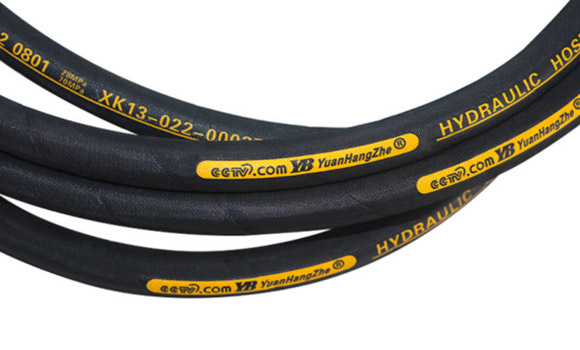

902 Mining Steel Wire Spiral Hydraulic Rubber Hose
Application：Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit
Tube：made of special rubber with good oil and weather resistance
Reinforcement：reinforced with copper coated steel wire and black fabric appearance
Cover：anti-aging synthetic rubber
Temperature Range： -40℃~+100℃(-40°F~+212°F)
Standard：Hose execution MSHA and MT/T98 standard
Characters： made of special rubber with good oil and weather resistance, reinforced with copper coated steel wire and black fabric appearance
Product Application
Application：Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit
Product Attributes
Tube：made of special rubber with good oil and weather resistance
Reinforcement：reinforced with copper coated steel wire and black fabric appearance
Cover：anti-aging synthetic rubber
Temperature Range： -40℃~+100℃(-40°F~+212°F)
Standard：Hose execution MSHA and MT/T98 standard
Characters： made of special rubber with good oil and weather resistance, reinforced with copper coated steel wire and black fabric appearance
Product Parameters
| TPYE | SIZE | SIZE | I.D | W.D | O.D | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | |||
| mm | inch | Min | Max | Min | Max | Min | Max | MPa | MPa | MPa | mm | kg/m | |
| 902-1302 | 13 | 1/2 | 12.7 | 13.5 | 18.8 | 20.4 | 23.0 | 25.0 | 33 | 42 | 100 | 210 | 0.70 |
| 902-1602 | 16 | 5/8 | 15.7 | 16.6 | 22.2 | 23.8 | 26.5 | 28.5 | 33 | 42 | 100 | 260 | 0.97 |
| 902-1902 | 19 | 3/4 | 18.7 | 19.8 | 26.2 | 27.8 | 30.0 | 32.0 | 28 | 35 | 84 | 280 | 1.09 |
| 902-2202 | 22 | 7/8 | 21.7 | 22.8 | 29.2 | 30.8 | 33.5 | 36.5 | 24 | 30 | 72 | 320 | 1.31 |
| 902-2502 | 25 | 1 | 24.7 | 25.8 | 32.2 | 33.8 | 36.5 | 39.5 | 21 | 28 | 64 | 360 | 1.45 |
| 902-3202 | 32 | 1-1/4 | 31.6 | 32.6 | 40.2 | 41.8 | 44.0 | 47.0 | 18 | 23 | 56 | 460 | 1.93 |
| 902-3802 | 38 | 1-1/2 | 37.7 | 38.8 | 47.0 | 48.6 | 50.5 | 53.5 | 15 | 23 | 46 | 560 | 2.49 |
| 902-4502 | 45 | 1-3/4 | 44.7 | 45.8 | 54.0 | 55.6 | 58.5 | 61.5 | 13 | 20 | 39 | 640 | 2.86 |
| 902-5102 | 51 | 2 | 50.5 | 52.0 | 59.6 | 61.2 | 64.0 | 67.0 | 13 | 20 | 39 | 720 | 3.31 |
| 902-1004 | 10 | 3/8 | 9.7 | 10.5 | 18.2 | 19.8 | 22.0 | 24.0 | 70 | 105 | 210 | 180 | 0.90 |
| 902-1304 | 13 | 1/2 | 12.7 | 13.5 | 21.4 | 23.0 | 25.5 | 27.5 | 57 | 86 | 172 | 210 | 1.04 |
| 902-1604 | 16 | 5/8 | 15.7 | 16.6 | 25.2 | 26.8 | 39.0 | 31.0 | 53 | 80 | 160 | 260 | 1.44 |
| 902-1904 | 19 | 3/4 | 18.7 | 19.8 | 29.2 | 30.8 | 32.5 | 35.5 | 46 | 69 | 140 | 280 | 1.62 |
| 902-2204 | 22 | 7/8 | 21.7 | 22.8 | 32.2 | 33.8 | 36.5 | 39.5 | 41 | 62 | 124 | 320 | 1.98 |
| 902-2504 | 25 | 1 | 24.7 | 25.8 | 35.2 | 36.8 | 39.5 | 42.5 | 35 | 53 | 112 | 360 | 2.19 |
| 902-3204 | 32 | 1-1/4 | 31.6 | 32.6 | 43.2 | 44.8 | 47.5 | 50.5 | 32 | 48 | 84 | 460 | 2.85 |
| 902-3804 | 38 | 1-1/2 | 37.7 | 38.8 | 49.8 | 51.8 | 54.5 | 57.5 | 25 | 38 | 75 | 560 | 3.79 |
| 902-4504 | 45 | 1-3/4 | 44.7 | 45.8 | 56.8 | 58.8 | 61.5 | 64.5 | 21 | 32 | 64 | 640 | 4.34 |
| 902-5104 | 51 | 2 | 50.5 | 52.0 | 62.8 | 64.8 | 67.5 | 70.5 | 21 | 32 | 64 | 720 | 4.88 |
| 902-1006 | 10 | 3/8 | 9.7 | 10.5 | 20.0 | 22.0 | 24.0 | 26.0 | 80 | 120 | 240 | 180 | 1.18 |
| 902-1306 | 13 | 1/2 | 12.7 | 13.5 | 23.8 | 25.8 | 28.5 | 30.5 | 72 | 108 | 216 | 210 | 1.34 |
| 902-1606 | 16 | 5/8 | 15.7 | 16.6 | 28.0 | 30.0 | 31.5 | 34.5 | 70 | 105 | 204 | 260 | 1.95 |
| 902-1906 | 19 | 3/4 | 18.7 | 19.8 | 32.0 | 34.0 | 35.5 | 38.5 | 60 | 90 | 180 | 280 | 2.17 |
| 902-2206 | 22 | 7/8 | 21.7 | 22.8 | 35.0 | 37.0 | 39.5 | 42.5 | 53 | 80 | 160 | 320 | 2.73 |
| 902-2506 | 25 | 1 | 24.7 | 25.8 | 38.0 | 40.0 | 42.5 | 45.5 | 50 | 75 | 152 | 360 | 3.00 |
| 902-3206 | 32 | 1-1/4 | 31.6 | 32.6 | 46.0 | 48.0 | 50.5 | 53.5 | 41 | 62 | 124 | 460 | 3.89 |
| 902-3806 | 38 | 1-1/2 | 37.7 | 38.8 | 52.8 | 54.8 | 57.5 | 60.5 | 36 | 54 | 108 | 560 | 5.22 |
| 902-4506 | 45 | 1-3/4 | 44.7 | 45.8 | 59.8 | 61.8 | 64.5 | 67.5 | 32 | 48 | 96 | 640 | 5.97 |
| 902-5106 | 51 | 2 | 50.5 | 52.0 | 66.2 | 68.2 | 71.5 | 74.0 | 32 | 48 | 96 | 720 | 6.70 |
